Hidden Seam Failures? We Put Flashing Tapes to the Test
This is part of an ongoing series. Read all the Sticky Business posts here.
Performance testing of adhesives and sealants used in our weather barriers is improving due to new field-testing research, as we’ve written about before. However, the improvements in testing haven’t reached a critical product area: pressure-sensitive adhesive (PSA) tapes used for sealing seams in flashing, housewrap, and generally creating continuity in air and weather barriers. “I am unaware of any work being done on this issue, either laboratory or field tests,” says Christopher White, of the National Institute of Standards and Technology (NIST).Service life of tapes can determine the service life of an entire high-performance building assembly.
The most commonly cited adhesion tests for pressure-sensitive adhesive (PSA) tapes are as follows:
- ASTM D3330 – Standard Test Method for Peel Adhesion of Pressure-Sensitive Tapes
- ASTM D903-98-04 – Standard Test Method for Peel or Stripping Strength of Adhesive Bonds
- ASTM D1876-01 – Standard Test Method for Peel Resistance of Adhesives
- ASTM D3654 – Standard Test for Shear Adhesion of Pressure-Sensitive Tapes
- ASTM D3330 – Standard Test Method for Peel Adhesion of Pressure-Sensitive Tapes
But none of these tests is ideally suited for lab-testing high-stretch construction flashing tapes, and none go anywhere near testing under field conditions. And since just about all tapes are used in concealed weather and air barrier systems, we really need a field-service-life prediction test.
“Workbench tests” of flashing tapes
So we took matters into our own hands—or rather, our own workbench. Lately I have been just sticking a slew of tapes on different building materials and gauging how hard it is to pull them apart.
SUPPORT INDEPENDENT SUSTAINABILITY REPORTING
BuildingGreen relies on our premium members, not on advertisers. Help make our work possible.See membership options »
My efforts got a lift in technical rigor when I was discussing this with David Gauthier, president of Vantem Panels here in Brattleboro, Vermont, a local structural insulated panel (SIP) manufacturer. David is always looking for gaskets and tapes to recommend with his panels. He said, “Hey, I bet we could use our tensile tester on the tapes!” (Van Tem uses a tensile tester to assess the strength of the bond between their skins—mostly OSB—and their foam cores).
What were we thinking?
We have no illusions that the testing we performed is up to the rigor of ASTM D3330—the list of how our testing is different from the standard Test Method A is at the end of this article.
And here is a thought: maybe our “benchtop” testing will inspire (or anger?) some experts from PSA tape manufacturers or test programs to conduct some field or field-like service life performance testing. We’d love to see more manufacturers engage in testing along the lines of the Sustainable Building Solutions Test Facility Tremco has going, in partnership with the Department of Energy.There are a lot of key differences, so no conclusions should be drawn from this testing. In any case, not all manufacturers report D3330, so we needed to pick one set of conditions and run as many tapes as we had through that one. We hope this testing provides some suggestive information.
After all, if the sealant manufacturers have rallied behind the work of Dr. Christopher White at NIST on standardized testing for field service life prediction of liquid sealants, can’t the PSA tape manufacturers rally behind our humble work to develop some testing and data for the field service life of PSA tapes?
Some lessons learned from our testing
Here are some things we noticed based on our test results (click to download the spreadsheet).
High-stretch tapes: All of our results are probably considerably lower than typical D3330 results. Consider this perspective offered by Forest Products Lab research chemist, Christopher Hunt:
“Rate vs load. The faster you pull, the higher your load. Molecules relax over time, resulting in lower tensile load. If you pull slowly, the molecules have time to relax during the test. If you pull really fast, they don’t and so loads (as well as elongation before break) are less. How much difference is going 1" per minute instead of 12"? Probably not big for this product, I’d guess that going at the specified speed may increase load by 10%–50%—but that’s only a guess. All the tapes will probably have similar effect, but not exactly the same.”
And since MOST of the tapes we tested had very similar stretch outcomes (2:1; see column J – “Travel Ratio”), that helps our habit of comparing the test results of different tapes. The notable exception would be the DuPont FlexWrap; it yields considerably lower tensile results but its stretch ratio was 14 compared to 2!
Difference between initial peak and (column G) and 2-inch peak (column F). Again, FPL research chemist Hunt:
“The first versus second inch phenomenon is likely because of elastic vs plastic deformation. The first movement is like pulling on a spring – it wants to go back. But you pull the spring too far and you’ve got a curly wire that never goes back. The difference is that you have exceeded the elastic limit of the material, and yes, the force required to keep stretching typically is less once you’ve passed this point. That’s why the standard is written that way—they want data on the stretched out material, not how hard it is to get started.”
- “Aging” of specimens – Ken Levenson of 475 High Performance Building Supply cautioned us that the solid acrylic adhesive used by Pro Clima tapes needs more time than other tapes to fully develop its adhesive bond—at least a couple of hours. Our results seem to support this; compare rows 17 and 31. The “aged” UNITAPE had significantly higher results. Compare Tescon VANA tape in rows 29 and 34; they “aged” results are much higher as well.
- Smooth vs. rough side OSB – PSA tapes just don’t stick to the rough side of OSB as well as the smooth side, period. Trouble is, some building inspectors mandate that the smooth side be to the interior (so that they can see the grade stamp—always on the smooth side—after the structural sheathing is covered with other materials, WRB and/or claddings). This puts the rough side to the exterior, right where you are likely to be taping seams for an OSB air barrier or window opening flashing if your windows are going in before your WRB.
Performance comparison of different types of adhesives – we need more data on this one, but the results suggest that acrylics demonstrate stronger adhesion than modified bitumen. We can’t really say much about the only butyl rubber tape, since its far greater stretch ratio makes its peak so much lower than the other adhesive tapes.
At the same time, the builder group that I worked with in the tensile testing, expressed interest in the combined performance/cost of the various tapes. The Huber ZipWall tape (solvent-based acrylic), at $20 per 75-foot roll, nearly half the cost of the Siga and Pro Clima tapes (solid acrylic) was a clear winner with the builders.
This is just baseline data. The builder group was quick to point out how “unreal” this “benchtop” testing was: what about applying the tape at 5ºF, or when the substrate is damp, or after 10 years of extreme temperature cycling in the building assembly? Could be the solid acrylic tape manufacturer claims of superior performance be worth the higher cost?
We hope to follow up this baseline ideal conditions testing with more field-like conditions.
For more background into our test methods, here’s a list of how our benchtop testing is different than the ASTM D3330 Test Method A (tapes peeled at 180° angle to the substrate, as pictured, Section [1.1.1] in the standard).Our testing vs. ASTM D3330
- [1.4] High stretch at low forces – D3330 does not handle high stretch tapes particularly well; the high stretch can lead to high variability in the test results.
- [5.3] Comparing results of different tapes – the standard specifically states that the test should not be used to compare tapes; it’s mainly “for quality assurance use.” (Say what? Why do manufacturers report D3330 test results or data available on their product performance?)
- [6.3] Panel (substrate): Method A uses a stainless steel panel as the substrate; we tested tapes on various common construction materials: A-C plywood (C side) and OSB (both rough and smooth side).

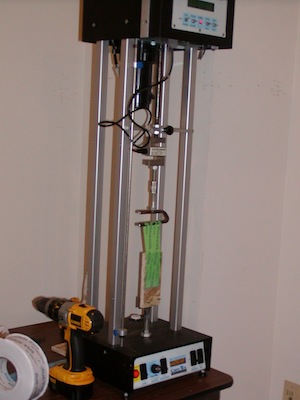

- [6.5] Adhesion tester – VanTem Panels’ tester is a constant rate extension (CRE) machine, but D3330 specifies the test rate at 12 inches per minute and the top speed of the Van Tem Com-Ten DFM5000 is just over 1 inch per minute, not a particularly good combination with our “high stretch” construction tapes. More on this above.
- [9.1] Width of specimens – Most construction tapes are 2 3/8-inches wide (60 mm); we decided to make ALL of our specimens this width.
- [11.3] “Aging” of specimen – The standard specifies that the test must occur within 1 minute of adhering the tape to the substrate. We had quite a bit of variability (up to one week…) in how “old” the adhesive bond was between the tape and substrate. More on this above.
-  Precision and bias – We did mostly single specimen testing, not even close to the number and tolerance for variation called for by the standard.
Clearly, our benchtop testing is VERY different than the standard and mainly about looking for some generalizations we might suggest from comparing tape test results. We don’t come anywhere near claiming ASTM D3330 results.
What have been your experiences—anecdotal or otherwise—in field service of flashing tapes? Please comment below.
Yost, P. (2012, August 30). Hidden Seam Failures? We Put Flashing Tapes to the Test . Retrieved from https://www.buildinggreen.com/blog/hidden-seam-failures-we-put-flashing-tapes-test
