Installing Insulation With the X-Floc Ventilated Dry Injection System

“We don't just do cellulose; we do it better.”

March 8, 2018

Slideshow (click to launch)

Photo of the X-Floc head

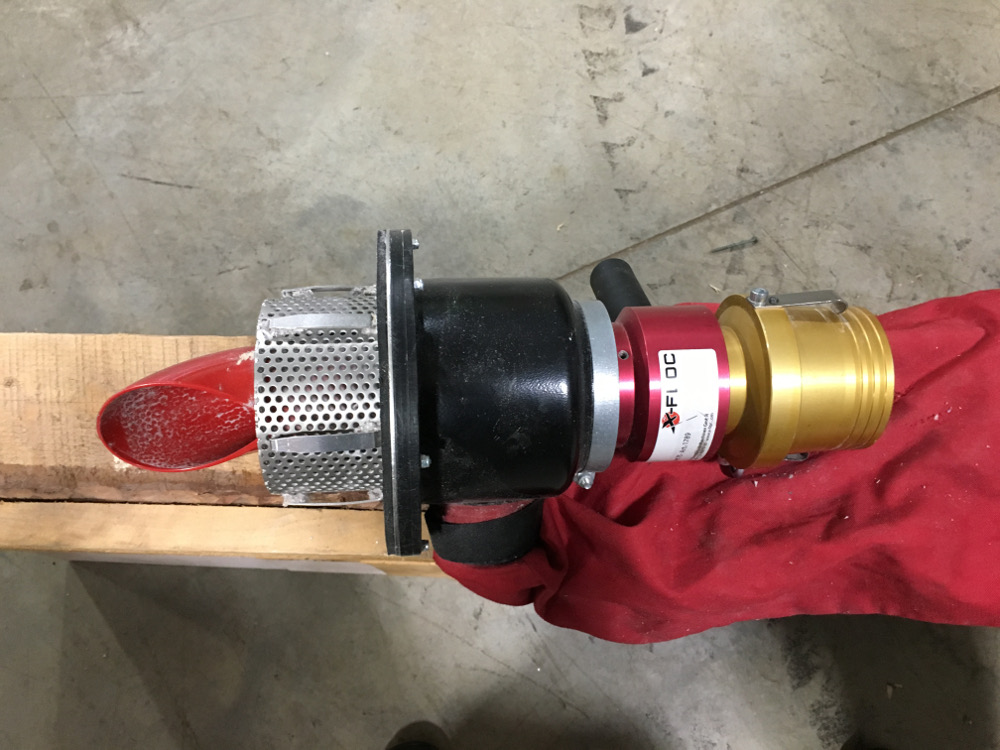

#1: X-Floc, the company that developed this injection head for cellulose insulation, claims that the blowing equipment provides more consistent insulation density than other cellulose blowing systems. The head has a perforated collar connected to a cloth filtering bag

Photo: Peter Yost
 At the end of my recent blog post on Kooltherm rigid phenolic foam insulation, I mentioned that the roof and wall assemblies at an energy retrofit project in Brattleboro, Vermont, were insulated with cellulose by a company called American Installations. The company claimed that the German blowing equipment it uses delivers cellulose at a more consistent density, and they were willing to prove it by doing a demonstration installation at their shop in Hadley, Massachusetts.

American Installations uses X-Floc equipment to install cellulose insulation. X-Floc is a manufacturer of insulation blowing equipment with headquarters in Renningen, Germany. The equipment manufacturer calls their approach the “X-Floc ventilated dry injection system.”

The X-Floc head (photo 1 in the slideshow) has a perforated collar connected to a cloth bag so that the air pressure driving the cellulose injection is relieved. (See Image #2 in the slideshow.)

Wes Couture, one of three brothers who run American Installations, describes their use of the X-Floc injection system: “The built-in passive ventilation for the cavity gives you the ability to handle the air that is being expelled from the cavity, and it provides a more uniform product.”

Couture continued, “The system is dustless. With a standard hose, there is no control to that air release and the air is basically being forced out the same hole that the hose is going into along with the cellulose; it is much more difficult to ensure consistent density on every cavity with this strategy. This system brings us to a single installation of the air barrier and dense pack [insulation] through the air barrier, and the cellulose is then also in direct contact with the air barrier as well. And because the air relief is built into the nozzle, we can install product significantly faster in certain situations, as we are able to increase the airflow much higher than if we were using a hose in a cavity with no air relief.”

SUPPORT INDEPENDENT SUSTAINABILITY REPORTING

BuildingGreen relies on our premium members, not on advertisers. Help make our work possible.

See membership options »

American Installations prepared two demonstration set-ups in their shop. The first was a three-cavity wall with a plexiglass face pinned in place with 1x3 strapping at each stud (see Image #3). The second test was of a small wall mockup that PreCraft built for the energy retrofit project in Brattleboro. This mockup included rough framing and board sheathing with clapboards, so we could see how the cellulose filled in the gaps expected at this type of assembly (see Images #4 and #5).

The video clip below is of the second (middle) cavity being filled with the X-Floc injection system.

The next video clip (below) is of the third (left-hand) cavity being filled using a conventional hose system.

The video clip below shows the left-hand cavity (insulated with conventional equipment) being teased apart to show the “plug” that the hose leaves at the tail-end of the installation, with inconsistent density fill.

Image #6 in the slideshow was taken at the end of the left-hand (conventional) fill. It shows the gap left by the hose at the end of the installation.

Images #7 and #8 show how the X-Floc dry injection system allows insulation fines to fill small cracks and crannies. American Installations claims that the X-Floc equipment results in better airtightness but admits that they have not—and to their knowledge no one else has—measured an increase in airtightness.

The video clip below shows two of the four short cavities being filled with the X-Floc injection system in the mockup wall framed with rough lumber.

Image #9 in the slideshow shows the cellulose fill in the mockup wall after taking off the interior rigid insulation.

Image #10 shows the mockup with a cavity unpacked, revealing the extent and nature of the fines and fibers filling the cracks and crannies.

The demonstrations show how the X-Floc dry injection system achieves a uniform cavity fill with cellulose. Does the way the insulation fines fill cracks mean that the wall insulated with this installation system achieves significantly greater airtightness? I think the answer to that question depends on the results of future air leakage testing. Stay tuned.
