Is There a Place for Vacuum Insulation in our Buildings?
Microtherm's vacuum insulation panel
For insulating our buildings, vacuum insulation panels may not be cost-effective, but they will become common in other applications
Microtherm's vacuum insulation panel, with a microporous substrate covered with an impermeable aluminum skin. Click to enlarge.Photo Credit: Microtherm
I’ve recently worked on revising the BuildingGreen Guide to Thermal Insulation, so I’ve been steeped in all sort of insulation materials, including some oddball products. One of those is vacuum insulation—operating on the same principle as a Thermos bottle.
Vacuum insulation is a great idea—in theory. To understand why, it helps to know a bit about heat flow.
How a vacuum slows down heat transfer
There are three modes of heat transfer: conduction, convection, and radiation, and if we remove most of the air molecules from a space—as occurs when we draw a vacuum—we largely eliminate the first two of those heat transfer mechanisms.
Conduction is the flow of heat from molecule to molecule. It’s the reason a cast iron skillet handle heats up, but thermal conduction also occurs across a layer of air, as kinetic is transferred from one air molecule to the one next to it. If we remove most of those air molecules by creating a vacuum, there will far less conductive heat flow.
Convection is the transfer of heat by moving molecules from one place to another. Warm air rises, and these convection currents carry heat—for example, this is the primary means that heat is delivered to a room from baseboard convectors (often called radiators). In a vacuum there are far fewer air molecules so convection of heat nearly stops.
SUPPORT INDEPENDENT SUSTAINABILITY REPORTING
BuildingGreen relies on our premium members, not on advertisers. Help make our work possible.
A sampling of vacuum insulation panels from Nanopore.Photo Credit: Nanopore
Only radiant heat flow occurs to a significant extent in a vacuum, because radiation is not dependent on air molecules. That’s why low-emissivity surfaces are so important in vacuum panels. The Stanley Thermos bottle has a very shiny, low-emissivity (low-e), inner surface that helps to reduce radiant heat transfer; the same sort of low-e surface is included in various vacuum insulation panels.
The net result is that an inch-thick vacuum insulation panel can provide a center-of-panel insulating value of R-25 or even more—compared with R-6 to R-7 for standard rigid foam insulation.
The “hardness” of a vacuum
The key property of a vacuum is it’s pressure or how “hard” it is. We often measure that with Torr units. One Torr is exactly 1/760th of a standard atmosphere (1.3 x 10-3 atm), or approximately 1 mm of mercury. With a very hard vacuum, more of the air molecules are sucked out, resulting a greater negative pressure. The walls of a typical Stanley Thermos bottle contain a relatively hard vacuum of 10-6 Torr. With such a hard vacuum, that Thermos bottle can keep coffee hot all day. By comparison, the vacuum in a flat vacuum insulation panel is typically no more than 1/1000th as strong (10-3 Torr).
The harder the vacuum, the more difficult it is to maintain it. Thermos bottles are made with a cylindrical design for optimal strength. With flat panels, it’s very hard to achieve comparable strength and maintain such a hard vacuum—particularly at the edges.
Using vacuums to insulate more than our coffee
If vacuums work so well to keep our coffee hot all day, why not use them to insulate our houses? Vacuum insulation panels have been used to insulate some high-tech demonstration homes, such as entrants in the Solar Decathlon student design competition in recent years, but high cost makes them impractical for real buildings.
There’s also the problem that puncturing that vacuum insulation panel will significantly reduce its insulating performance. (I can imagine how bummed one would be after spending thousands to insulate a home with vacuum insulation panels and then hearing a hiss while hanging a painting!)
However, these vacuum insulation panels (sometimes called VIPs) could make a great deal of sense in certain value-added products like refrigerators, freezers, water heaters, and entry doors. Whirlpool actually used a VIP that Owens Corning produced for a while (the Aura panel) in a high-efficiency refrigerator in the mid-1990s, but then dropped both the refrigerator and the use of VIPs.
But I believe the benefits of R-25 or more in a one-inch-thick panel are significant enough—especially as we try to get more usable volume in refrigerators without growing the exterior dimensions—to warrant the embrace of vacuum insulation. These could also be a great solution for exterior doors that are notoriously poorly insulated—as I’ve written about in this blog post.
There are at least a half-dozen manufacturers of vacuum insulation panels today. Most, including Microtherm and NanoPore, produce panels that have a rigid, porous substrate surrounded by an impermeable metal skin.
[NOTE: Dow no longer makes its VIP panel; information is for historial interest only.]

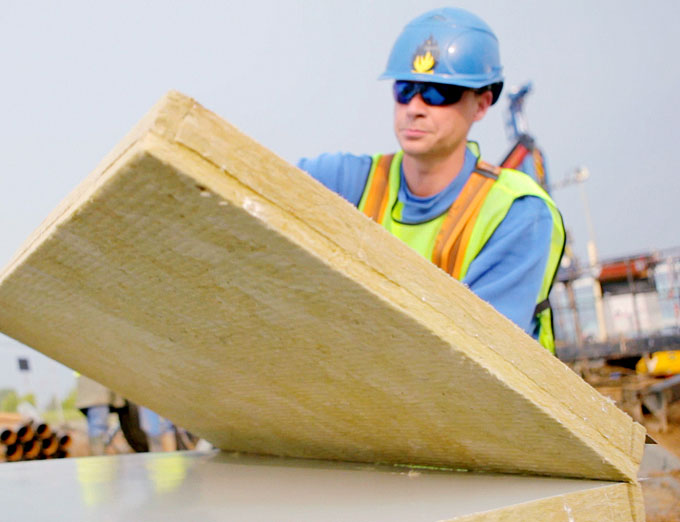

Dow's new vacuum insulation panel is encased in mineral wool to protect it. The company looks to incorporate this product into commercial building facades. Photo Credit: Dow Corning
A new VIP on the market
The latest VIP to come along is made by Dow. This panel, not yet widely available, is one inch thick and has a center-of-panel insulating value of R-39 and a “unit R-value” (accounting for the edges) of R-30, according to the company.
The Dow product has a core made of fumed silica cake, a remarkable “microporous” material that provides R-8 per inch even without a vacuum. This material allows a very high insulating value even with a softer vacuum. The core is reinforced with silicon carbide and polyester fibers for structural support, and it is encased in an inner layer of polyethylene and an outer layer of polyethylene, polyester, and aluminum. The panels are vacuum-sealed, and the edges are heat-sealed.
According to a BuildingGreen Report article, these Dow Corning panels should cost $10-12 per square foot. At that cost, I believe VIPs can be very practical for those appliance and exterior door applications noted above.
