Stormwater Management: Environmentally Sound Approaches
Stormwater management provides an excellent example of how, by making the most environmentally responsible choices, you can often save money as well.
Stormwater is defined as precipitation that does not soak into the ground or evaporate, but flows along the surface of the ground as runoff. As land is developed, stormwater becomes a bigger and bigger concern.
A number of aspects of development contribute to the increase in stormwater: destruction of natural vegetation, land clearing, filling of natural wetlands, changing surface topography of land, and building impervious surfaces such as rooftops, driveways, and roads.
This article introduces the issue of stormwater management and presents strategies for reducing the quantity of runoff and for dealing with runoff in a manner that minimizes environmental impact. Even though many building projects do not come under strict stormwater regulations, the information in this article applies to virtually all new construction: small projects as well as large. Stormwater management provides an excellent example of how, by making the most environmentally responsible choices, you can often save money as well.
Problems Caused by Stormwater
Without proper management, stormwater can cause erosion, flooding, and pollution of surface waters. As development increases, both the quantity of precipitation that runs off the land and the rate of discharge increase. These two principles are illustrated in Figure 2, below. Flooding in the Midwest in 1993 was exacerbated by development (see
EBN Vol. 2, No. 5). Quantities of sediment removed from disturbed land by storms can be staggering. A single one-inch storm event in Tennessee’s Reelfoot Lake Watershed deposits more than 100,000 tons of sediment in the lake, according to a recent publication from the U.S. Environmental Protection Agency. This sediment is often fertile topsoil—a critical and, unfortunately, threatened agricultural resource.
Along with sediment, pollutants carried by stormwater include road salts, fertilizers and pesticides from lawns and agricultural lands, nutrients and bacteria from pet and livestock wastes, and a wide range of pollutants from automobiles (heavy metals, particulates, fuels, and lubricating oils). These are considered “non-point-source” pollutants because they are delivered to a body of water from dispersed and uncontrolled sites instead of from a specific entry point, such as a pipe (“point-source” pollution). How we reduce and manage stormwater runoff has a tremendous effect on pollutant loading of streams, rivers, and lakes.

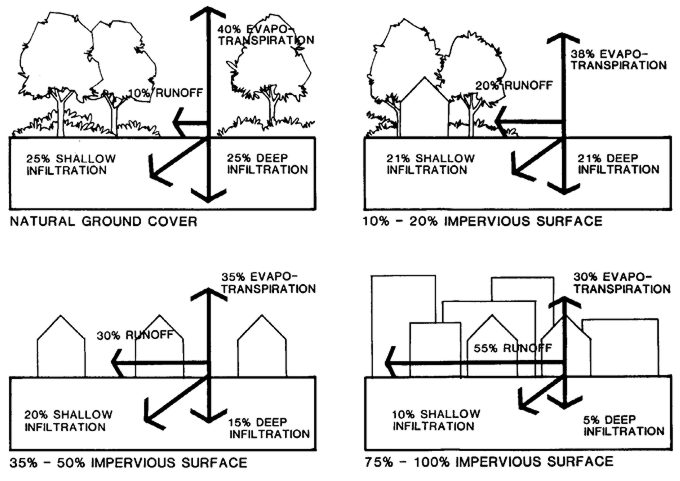

Another very important issue is that stormwater runoff reduces groundwater recharge. Throughout much of the United States, underground aquifers are being depleted more quickly than they are being recharged. Delivering as much rainfall as possible directly to these aquifers should be an important land management goal.
Stormwater Management Practices
Many states and municipalities have stormwater management regulations to limit peak discharge rates, erosion, sedimentation, and pollutant loading from stormwater runoff. These regulations vary widely in the types of projects they apply to and in their specific requirements. Builders and developers should check with state environmental protection agencies and applicable local commissions to find out exactly what laws and regulations apply to their projects. But do not stop there. Remember, those laws and regulations are minimums. Even if specialized stormwater management practices are not required as part of the permitting process (with small residential building projects, for example), it still makes a great deal of sense from an environmental standpoint to manage stormwater properly.
As defined by the Northeastern Illinois Planning Commission, a good stormwater management practice should “mimic, as closely as possible, the runoff process of the site in its natural state.” This entails preserving natural storage, infiltration, and filtering functions, and it leads to the following primary objectives of stormwater management:
•To minimize water quality degradation;
•To minimize downstream erosion, flooding, and habitat loss;
•To maintain natural river and stream flows;
•To maintain natural groundwater and aquifer levels;
•To provide opportunities for multiple use of drainage and storage facilities; and
•To provide for economical, safe, aesthetic, and socially acceptable drainage in new developments.
Somewhat surprisingly, environmentally responsible management of stormwater does not have to cost a lot. In fact, the recommendations included in this article are often much less expensive than conventional modern stormwater management practices. Conventional practice has typically been to get rainfall off the land as quickly and efficiently as possible—using, for example, culverts, rip-rap-lined channels, and stormwater sewers. Large detention ponds are often required to store runoff on-site and slowly release it so as not to increase surface water peak flows downstream. If, instead, we design our projects to minimize the quantity of runoff and then provide for natural infiltration into the ground, tremendous savings can be achieved.
In a planned Hartford, Connecticut shopping mall expansion, for example, by specifying pervious grass paving in an overflow parking area at a cost of $500,000, the developer will completely avoid having to build a detention pond that was projected to cost more than $1,000,000. Because conventional asphalt paving would cost almost as much as the grass paving, the total savings are nearly a million dollars—plus, there were savings in the permitting process because the grass paving was more acceptable to neighbors and environmental officials.
In the 240-unit Village Homes project in Davis, California, built in 1981, developer Michael Corbett saved an estimated $800 per lot by substituting a surface drainage and infiltration system for a conventional storm sewer system. Corbett had difficulty convincing the public works department that the innovative approach would work, and had to post a ten-year performance bond to ensure that the system would work as designed. A few years after completion of the project, a 50-year storm hit the Davis area. Storm drainage systems throughout the area failed, and stormwater from some neighboring subdivisions even overflowed onto the Village Homes development, which handled all the extra water just fine. “Not only did it work,” said Corbett, “it worked better than the city system.” After the storm, the city gave Corbett his money back.
In large development projects, the savings that can be achieved by appropriate stormwater management can be used to offset the extra costs of other environmental building practices that are more expensive than conventional practice. Thus, environmentally sensitive stormwater management can, in effect, subsidize other environmental measures, keeping the whole project budget within the range of conventional construction.
Although stormwater management is usually considered a specialized civil engineering field, strategies to deal with stormwater runoff are really interdisciplinary. They should be incorporated into decision making at many steps along the design process and should be considered by almost all architects, designers, designer-builders, and landscapers. For any large development project, appropriate professionals should be hired to come up with a comprehensive and appropriate stormwater management plan. The developer, builder, or project architect can play a vital role in determining what type of stormwater management plan is developed in two ways: first by careful selection of the team to develop such a plan; and second, by carefully directing that team’s work. Look for a landscape architectural and/or engineering firm that understands and appreciates the environmental benefits of reducing and properly managing stormwater. Ask to see examples of past work and look specifically for practices described below.
The following recommendations for environmentally responsible stormwater management are a starting point only. For more in-depth information and recommendations on stormwater management, consult one of the publications listed at the end of this article.
Reduce the Amount of Stormwater Created
The best way to deal with stormwater runoff is to reduce the amount you have to deal with. This may seem pretty obvious but, remarkably, it is often overlooked by builders and developers who opt instead for complex engineering solutions. Reducing the volume of stormwater runoff can significantly reduce the costs of measures for managing it.
1.Minimize impact area in a development.Many aspects of development—paving, building structures, and compacting soil, for example—reduce the permeability of the ground. Try to minimize the creation of impervious surfaces and leave as much land on a site undisturbed, preserving existing landforms, topography, and vegetation (i.e., design with nature). The acceptable density of development should be limited by the ability of the land to absorb the rainwater that falls on it. .
2.Minimize directly connected impervious areas.Avoid situations in which one impervious surface drains onto another impervious surface, as these magnify stormwater runoff problems. A paved sidewalk, for example, should not drain onto a paved street. Try to separate impervious surfaces with areas of turf, other vegetation, or gravel. .

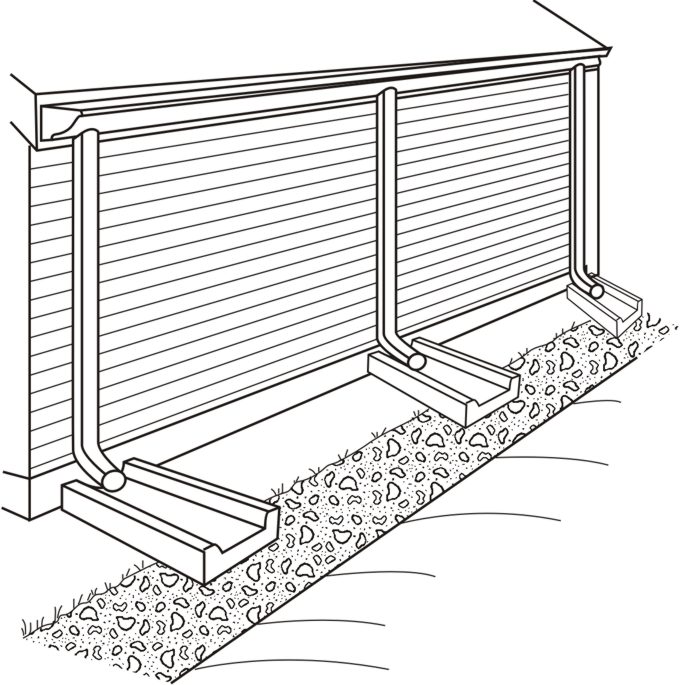

3.Do not install gutters unless rainwater is collected for use.
Gutters on roofs concentrate rainwater and often make special measures for its management necessary.
As an alternative, consider no gutters with gravel-filled “Dutch drains” at the base of the wall, or special gutters that disperse the water outward away from the building. Eliminating gutters is only realistic for one-story or at most two-story buildings. If gutters are installed and the downspouts drain onto vegetated ground or into infiltration trenches, install as many downspouts as possible to distribute flow.
4.Reduce paved area through cluster development and narrower streets.By clustering buildings and preserving larger areas of open space, the surface area of roads and sidewalks can be significantly reduced. Narrower streets will generate less stormwater runoff. In a development, it often makes sense to keep streets narrow and provide off-street parking on pervious surfaces.
5.Install porous paving where appropriate.Conventional asphalt or concrete pavement is fairly impervious to moisture. Even unpaved gravel roads and parking areas have low permeability. Porous asphalt and concrete paving systems are available that permit rainwater to percolate through into a gravel drainage layer. These systems are relatively uncommon and work best in low-traffic parking lots and driveways. Most existing applications are in non-freezing climates. The biggest problem with porous pavement is clogging from sediment and dirt that can accumulate on the surface. Regular vacuum sweeping and special measures to keep mud off are required.
In addition to continuous porous paving materials, a number of different
modular concrete or plastic grid pavers are on the market. The grids are filled with gravel or with soil and grass. The pavers prevent the gravel or soil from being compressed so that the permeability is maintained and grass roots are not damaged. Porous grid pavers planted with grass are only suitable for low-traffic areas. GrassPave™, a modular porous grid paver made of recycled HDPE plastic, was reviewed in EBN
6.Where possible, eliminate curbs along driveways and streets.Eliminate curbs and provide direct transitions to grass so that most rainwater will be directly absorbed. With curbs, stormwater becomes more concentrated (see related recommendations 21 and 22).
7.Plant trees, shrubs, and groundcovers to encourage infiltration.Vegetation enhances the ability of soil to absorb rainfall. Existing vegetation should be protected and, where necessary, new vegetation planted. In general, woodlands with dense underbrush provide higher permeability than turf, but there are many variables involved, including soil characteristics, the roughness of the ground surface, and the specific plant species.
Keep Pollutants Out of Stormwater.
Many of the environmental impacts from stormwater runoff come from pollutants being carried into surface waters. An important strategy for reducing the environmental impact of stormwater runoff, therefore, is to keep pollutants out of the stormwater. Most strategies for pollution source control, such as minimizing road salt, sweeping streets regularly, and implementing animal waste ordinances, relate more to management practices than design and construction. But a few pollution-avoidance strategies can be influenced through building design, siting, and construction.
8.Design and lay out communities to reduce reliance on cars.Many pollutants that are carried into surface waters by stormwater come from automobiles: particulates from exhaust, dripping oil pans, leaking radiators, zinc oxide from tires, heavy metals in lubricating oils and brake linings, etc. Any strategies that reduce dependence on automobiles, therefore, can have a major impact on reducing pollutant runoff. Provide access to public transit. Design communities to provide pedestrian access to basic services (corner store, restaurants, etc.). Incorporate walkways and bicycle paths into master plans. Design houses to facilitate home office use (telecommuting).
9.Provide greens where people can exercise pets.Pet excrement is often the largest single source of bacteria and nutrient pollution in urban stormwater runoff. In high-density developments, provide plenty of green areas where people can walk their dogs to keep pet excrement away from sidewalks and other impervious surfaces. In high-density developments, institute ordinances requiring owners to collect their pets’ excrement.
10.Incorporate low-maintenance landscaping.Avoid landscaping strategies that rely on frequent fertilizer, pesticide, and herbicide applications (see EBN
11.Design and lay out streets to facilitate easy cleaning.Studies show that regular street cleaning can be moderately successful at keeping certain pollutants, such as heavy metals, out of stormwater. To facilitate regular cleaning, provide for off-street parking in new developments (this complements recommendation 4, above).
12.Control high-pollution commercial and industrial sites.Gas stations, railroad yards, freight-loading areas, and high-use parking lots can be very significant sources of pollution runoff. Specialized measures for runoff collection and pretreatment may be required or desirable in these situations, particularly if fuel or chemical spills are likely. Oil/water separators, for example, may be appropriate in some situations.

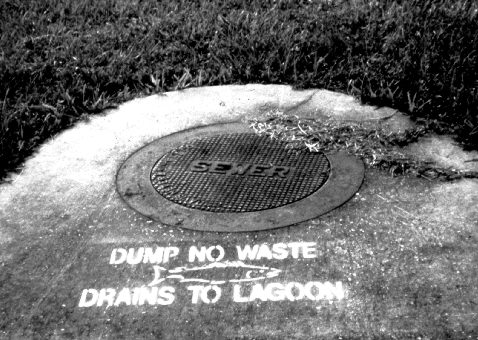

13.Label storm drains to discourage dumping of hazardous wastes into them .Many homeowners are not aware that storm sewers flow directly into rivers or other surface waters. Very significant toxic pollutant loading can result from unaware homeowners dumping used motor oil, antifreeze, or other hazardous wastes into stormwater sewers. Illegal dumping can be discouraged through informative signs that warn of pollution and health hazards associated with the practice.
Managing Stormwater Runoff at Construction Sites
Because of disruption to vegetation and the ground surface, construction sites require special practices to minimize stormwater runoff, erosion, and pollutant discharge into streams and rivers.
14.Work only with reputable excavation contractors.It is not unusual for heavy equipment (bulldozers, excavators, backhoes), to leak hydraulic fluid, engine oil, and fuel, particularly if that equipment is not properly maintained. A gallon of leaked hydraulic fluid or diesel fuel will contaminate a large volume of soil and result in polluted runoff for a long period of time. Avoid the temptation simply to choose the low bidder for excavation work. Try to establish a long-term working relationship with one or more excavation contractors who have proved to be responsible.
15.Minimize the impact area during construction.With large projects, try to work in phases, disturbing only those sites where building is occurring. This may increase excavation costs somewhat by requiring that equipment be brought in more times, but it can significantly reduce erosion.
16.Avoid soil compaction.Compacted soils are less able to absorb water and thus lead to increased stormwater runoff. On the job site, limit all vehicular traffic to designated areas, restrict parking of construction vehicles on-site, and try to work out arrangements for particularly heavy vehicles (concrete trucks, cranes, etc.) to back in or out of the job site so that space for turning around is not required. If porous pavement is planned for the driveway, that area should be left undisturbed during construction so that the subsoil is not compressed, and an alternate access road should be used for construction vehicles.
17.Stabilize disturbed areas as soon as possible.Try to regrade and plant disturbed areas as soon as possible after excavation work to reduce erosion. When finish grading cannot be done quickly, piled soil and disturbed areas should be protected with straw, filter fabric, or temporary seeding.
18.Minimize slope modifications.Carry out site design and landscaping to keep slope gradient and length to a minimum. Try to leave steeper slopes undisturbed. If significant grading is required on steep slopes, consider terracing to minimize erosion.
19.Construct temporary erosion barriers.Check dams, straw bale barriers, filter fences, swales, and other measures should be used to capture sediment in the runoff from construction sites. See resources for design specifics.
Permanent On-Site Facilities for Stormwater Control & Treatment
All too often, stormwater systems are designed only to collect and move stormwater off-site via municipal stormwater sewers. Whenever possible, stormwater should be stored and/or absorbed
on-site. This will keep it from adding to erosion and flooding problems downstream and provide for careful treatment of the water. In large development projects, specific measures for stormwater collection, storage, and treatment are generally required as part of the permitting process. In most cases, it makes sense to incorporate several of these permanent stormwater management features, which are usually called best management practices (BMPs). Not all BMPs are suitable to all sites. To ensure proper functioning of BMPs, careful construction and maintenance are required. The lack of good maintenance has been a widespread problem with stormwater management practices.
20.Rooftop water catchment systemsA rooftop rainwater catchment system can significantly reduce stormwater runoff. Collected rainwater can be used for landscape irrigation, thus reducing the use of potable water. Depending on design storm calculations and usage of collected water, overflow will be required for the storage reservoir. Measures may be required to keep mosquitoes and other insects out. See EBN
Vol. 2, No. 4 for a construction detail of a rooftop water catchment system.
21.Vegetated filter strips Vegetated strips along impervious paved surfaces provide for some infiltration of runoff, sediment filtering, and some pollutant removal. Curbs should be avoided, and the paved surface should be even with the vegetated filter strip. The filter strips should slope downhill away from the paved surface. Grass should be planted if these strips are to be used as part of the stormwater conveyance system. If not, any groundcover can be used, although the groundcover should be dense enough to keep overland flow from channelizing and eroding rivulets in the soil.

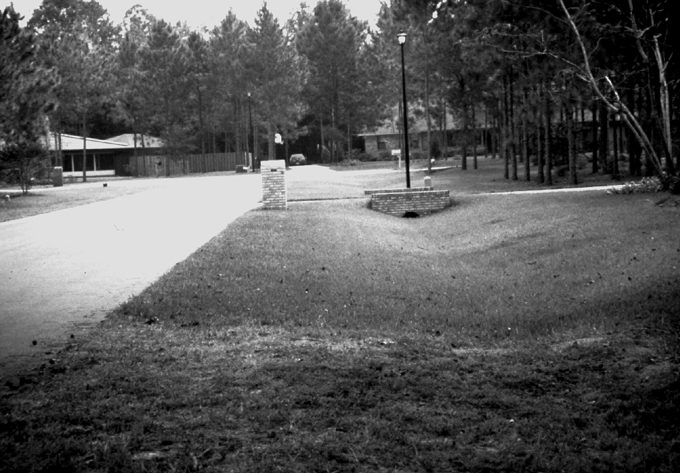

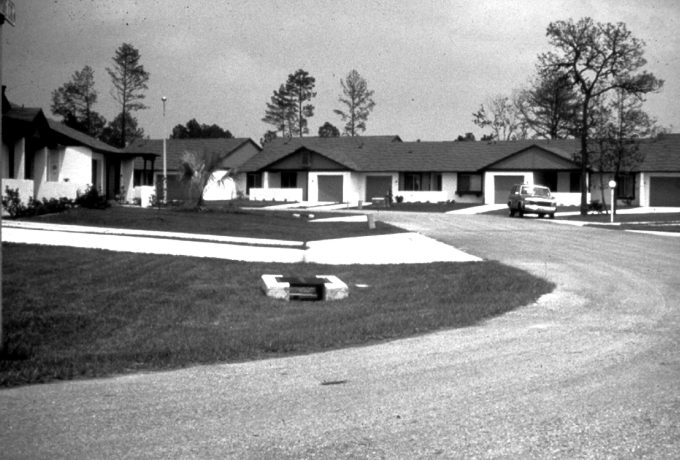

22.Vegetated swales for stormwater conveyanceWhere possible, use open vegetated “biofiltration” swales to carry stormwater rather than channeling stormwater into pipes or culverts. The use of these swales (planted with grass) provides some infiltration, slows the flow of water, and removes pollutants to some extent. Along roads and other paved surfaces, vegetated filter strips should separate the paved surface from the swale to filter out sediment. Because swales are open, they permit easy tracking of pollutant discharged upstream, should pollutants appear.

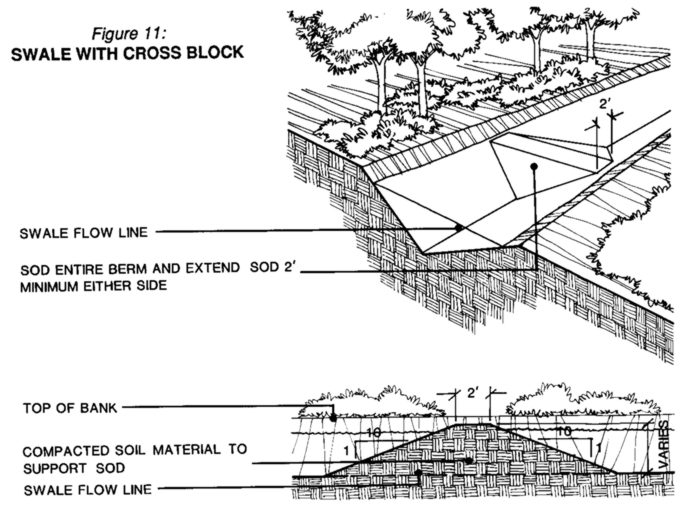

23.Check dams in vegetated swales24.Infiltration basinsInfiltration basins are broad, flat, vegetated depressions where stormwater can infiltrate into the ground and recharge the groundwater. As the water percolates through the soil, soil bacteria and the soil itself remove pollutants. A well-designed infiltration basin can serve other uses, but uses that would result in significant soil compaction should be avoided.

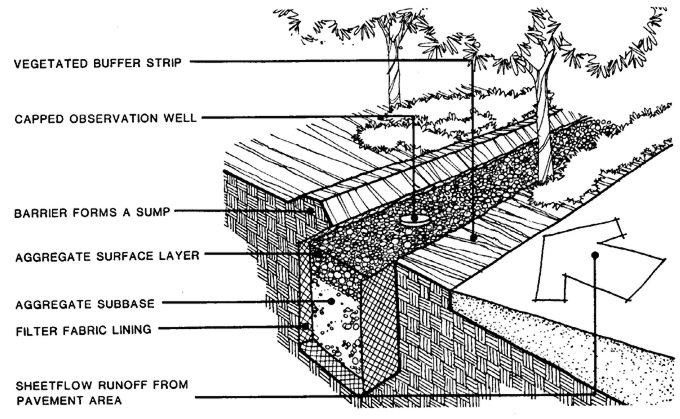

25.Infiltration trenchesInfiltration trenches are like infiltration basins, but most of the infiltration occurs below-ground. Some infiltration trenches have exposed gravel or crushed stone at the surface; others are seeded with grass (less visually obtrusive) and include provision for water to enter through another means. Filter fabric is important with most infiltration trenches to prevent clogging. Observation wells are often installed to permit monitoring of water level. Roof downspouts can empty into specialized below-grade infiltration trenches that extend away from the building (these are often called drywells). As mentioned previously, however, a preferable solution is to collect rainwater from roofs and use it for landscape irrigation.
26.Dry detention pondsDry detention ponds are a common feature of stormwater management systems. They temporarily hold stormwater during periods of heavy rainfall to prevent flooding downstream. Stormwater is channeled into the pond, and an outlet structure provides for gradual release of the water during and after the storm event. Most detention ponds are designed to dry out completely between storm events. Because of the short water-retention time, dry detention ponds are not very effective at removing pollutants. Extended detention ponds that hold water for longer periods of time are generally better because more sediment can settle out and because downstream flooding will be reduced during and right after storms.

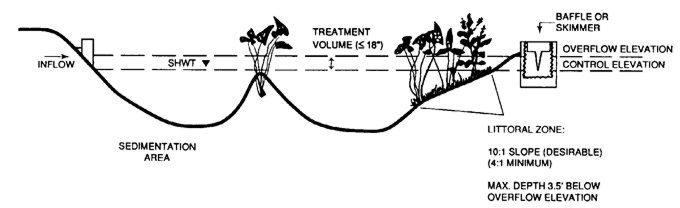

27.Retention pondsRetention ponds (sometimes called wet detention ponds) are similar to dry detention ponds, but they are designed to hold water all the time, with the water level rising during storms. The most effective retention ponds include shallow areas where wetland plants flourish and help remove pollutants. Retention ponds should be shallow enough that wind keeps the water mixed and aerobic throughout the pond; otherwise the bottom may become anoxic and result in nutrient release from the sediment, which could add to nutrient runoff in the next storm. Sediment settles out of the stormwater runoff in retention ponds, thus reducing downstream deposition; for that reason they occasionally may have to be dredged. A well-designed retention pond can serve recreational uses and boost property values. Retention ponds are generally not as appropriate in arid regions because of evaporation.
28.Constructed wetlandsLike the shallow edges of retention ponds, constructed wetlands function extremely well at nutrient and other pollutant removal, and they can be an excellent stormwater BMP in wetter parts of the country. In fact, they work so well that they are increasingly used for sewage treatment (see EBN
29.Filtration systemsFiltration systems are sometimes used in stormwater management. The primary function is to remove sediment, but they also remove some pollutants that adhere to sediment particles. Sand filters are most common. Sand filters used for stormwater filtration must be carefully built and properly maintained to continue functioning properly. Some promising research is currently being done on organic material filters, such as composted and screened leaves collected through municipal leaf collection programs. Pollutant removal is likely to be much greater from such systems. A compost stormwater filter (CSF™) developed by CSF Treatment Systems, Inc. of Portland, Oregon has been shown to remove over 85% of oil and grease, 82% of heavy metals, and 40-77% of phosphorus, according to the company.
Stormwater management is one of those specialty fields that tend to intimidate builders, developers, and architects. Indeed, stormwater engineering requires complex soil and topography mapping, analysis of storm intensity, and calculations of stormwater runoff in various situations. But while the details of stormwater management are complex, the general concepts are relatively simple.
A common misconception about stormwater management is that it’s only a concern with large developments. It is true that complex detention pond systems only come into play with large developments, but many aspects of responsible stormwater management apply to any new construction project. In fact, it is the small projects that do not require stormwater management plans as part of the permitting process where your own decision to address the issue is often most important from an environmental standpoint—because otherwise nothing would be done.
This article should be considered a starting point only. If possible, get hold of one of the publications listed below and delve further into this important issue. Doing so will not only be good for the environment, it can be good for your bottom line.
For more information:
Stormwater Management: A Guide for Floridians. Florida Department of Environmental Regulation, (72 pages). Available from Stormwater/Nonpoint Source Management, 2600 Blair Stone Road, Tallahassee, FL 32399-2400
Design and Construction of Urban Stormwater Management Systems (Manual of Practice No. 77) jointly published by the American Society of Civil Engineers and the Water Environment Federation, 1992 (724 pages). Available from ASCE, 345 East 74th Street, New York, NY 10017, or from the Water Environment Federation, 601 Wythe St., Alexandria, VA 22314; 703/684-2400. Pricing: $45 for members; $60 nonmembers. Quite technical manual with primary focus on more conventional engineering practices. Chapter 12, “Stormwater Management Practices for Water Quality Enhancement,” is particularly good.
Virginia Erosion and Sediment Control Handbook, Third Edition, Virginia Department of Conservation and Recreation, 1992 (783 pages). Available from Department of Conservation and Recreation, Division of Soil and Water Conservation, 203 Governor Street, Suite 206, Richmond, VA 23219; 804/786-2064; $23 postpaid. The most thorough manual we’ve seen on job-site erosion control, including excellent information on erosion-control plantings. Less emphasis on pollutant removal from stormwater.
Water Resources Protection Technology: A Handbook of Measures to Protect Water Resources in Land Management, by J. Toby Tourbier and Richard Westmacott, Urban Land Institute, 1981 (178 pages). Available from ULI, 625 Indiana Avenue, NW, Washington, DC 20004; 202/624-7000; $39.95 postpaid (nonmember price). Somewhat dated, but very useful publication. Presented as a series of practical fact sheets, each one covering a specific measure (or measures) to protect water resources when carrying out development projects. For example, porous asphalt paving is one measure described under the category “Delay or Infiltration of Runoff at Source.”
Best Management Practice Guidebook for Urban Development, Northeastern Illinois Planning Commission, July 1992 (60 pages). Available from Northeastern Illinois Planning Commission, 222 S. Riverside Plaza, Suite 1800, Chicago, IL 60606; 312/454-0400; 312/454-0411 (fax). Cost: $6. Excellent non-technical introduction to stormwater management, erosion control, and other issues relating to urban development. Emphasis on environmentally responsible practices as opposed to more conventional engineering solutions.
Stormwater Management Manual for the Puget Sound Basin, Washington State Department of Ecology, 1992 (approx. 800 pages). Available from the Washington State Department of Ecology, P.O. Box 47600, Olympia, WA 98504; 206/407-6400. Cost: approx. $30 plus UPS shipping (recipient invoiced). The most complete and useful publication on stormwater management we reviewed. Excellent coverage of environmentally responsible practices to remove pollutants through biofiltration. If you purchase only one manual on stormwater management, this should be it.
Stormwater Management: A Guide for Floridians, Florida Department of Environmental Regulation, undated (72 pages). Available from Stormwater/Nonpoint Source Management, Florida D.E.R., 2600 Stone Road, Tallahassee, FL 32399-2400. Non-technical overview of stormwater management. Clearly illustrated.
Information on compost stormwater filters: CSF Treatment Systems, Inc., P.O. Box 19390, Portland, OR 97280; 503/644-8220; 503/526-0775 (fax)
